How to create a Web service project in Eclipse



Creating a web service project in Eclipse involves several steps, typically utilizing Java-based frameworks like JAX-WS (SOAP) or JAX-RS (RESTful services). I'll guide you through creating both types of web services in Eclipse. For this example, I'll assume you're working with Java and using Apache Tomcat as the web server.

1. Set Up Eclipse and Required Tools

Ø  Eclipse IDE: Ensure you have Eclipse IDE for Java EE Developers installed.

Ø  Apache Tomcat: Install Tomcat (if not already installed) and add it to Eclipse.

ü  Go to Eclipse > Preferences > Server > Runtime Environments and click Add.

ü  Choose Apache Tomcat, point to the installation directory, and finish.

2. Create a Web Service Project

Ø  Go to File > New > Dynamic Web Project.

Ø  Enter the project name (e.g., MyWebServiceProject).

Ø  Set the Target runtime to Apache Tomcat.

Ø  Click Next and configure the project as required.

Ø  Click Finish.

3. Create a JAX-WS (SOAP) Web Service

To create a SOAP-based web service using JAX-WS, follow these steps:

A. Create the Web Service Class

Ø  Right-click the src folder and select New > Class.

Ø  Enter the class name (e.g., MySOAPService) and add the @WebService annotation from javax.jws.WebService.

java

package com.example.webservice;



import javax.jws.WebService;



@WebService

public class MySOAPService {

    public String sayHello(String name) {

        return "Hello " + name + ", Welcome to SOAP Web Services!";

    }

}



B. Deploy the Web Service

Ø  Right-click the project and select New > Other > Web Services > Web Service.

Ø  Choose the service class (MySOAPService).

Ø  Select Top Down Java Bean Web Service.

Ø  Click Next, and Eclipse will generate the required WSDL and configuration files.

Ø  Follow the wizard to deploy the web service to Apache Tomcat.

C. Test the Web Service

Ø  Use a SOAP client like Postman or SOAP UI.

Ø  Your WSDL will typically be accessible at http://localhost:8080/MyWebServiceProject/MySOAPService?wsdl.


4. Create a JAX-RS (RESTful) Web Service

If you prefer to create a RESTful web service, follow these steps:

A. Install Jersey/JAX-RS Libraries

Ø  You need to add the Jersey libraries (for JAX-RS) to the project:

ü  Right-click the project, go to Build Path > Configure Build Path.

ü  Go to the Libraries tab, click Add External JARs, and select the required Jersey JAR files. You can download them from the Jersey website.

B. Create the RESTful Service Class

Ø  Right-click the src folder and create a new class (e.g., MyRESTService).

Ø  Use the @Path and @GET annotations to create the REST endpoints.

java

package com.example.webservice;



import javax.ws.rs.GET;

import javax.ws.rs.Path;

import javax.ws.rs.Produces;

import javax.ws.rs.core.MediaType;



@Path("/hello")

public class MyRESTService {



    @GET

    @Produces(MediaType.TEXT_PLAIN)

    public String sayHello() {

        return "Hello, Welcome to RESTful Web Services!";

    }

}



C. Configure web.xml for REST

Ø  In the WebContent/WEB-INF/web.xml file, configure the Jersey servlet:

xml

<web-app>

    <servlet>

        <servlet-name>Jersey REST Service</servlet-name>

        <servlet-class>org.glassfish.jersey.servlet.ServletContainer</servlet-class>

        <init-param>

            <param-name>jersey.config.server.provider.packages</param-name>

            <param-value>com.example.webservice</param-value>

        </init-param>

        <load-on-startup>1</load-on-startup>

    </servlet>



    <servlet-mapping>

        <servlet-name>Jersey REST Service</servlet-name>

        <url-pattern>/api/*</url-pattern>

    </servlet-mapping>

</web-app>



D. Deploy and Test

Ø  Deploy the project to Tomcat by right-clicking the project and selecting Run As > Run on Server.

Ø  Open a browser or use a REST client like Postman to access the service at:

ü  http://localhost:8080/MyWebServiceProject/api/hello.

5. Test the Web Service

You can test the SOAP and RESTful services using clients like SOAP UI for SOAP services or Postman for REST services.

6. Deploy to a Server

To deploy the project:

Ø  Right-click the project and select Run As > Run on Server to run locally.

Ø  Export it as a WAR file (File > Export > WAR file) and deploy it to a remote server if needed.

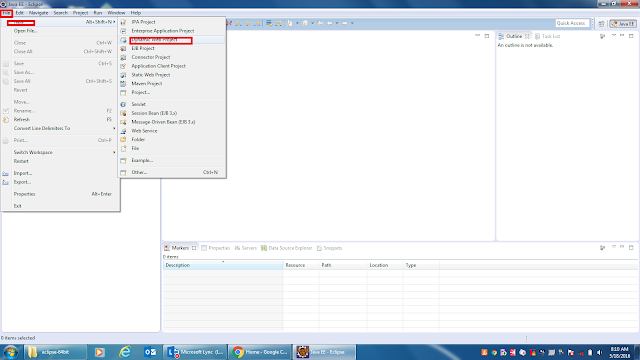

Fig 1
Fig 1

Fig 2
Fig 2





Fig 3
Fig 3




Fig 4
Fig 4

Fig 5
Fig 5

Fig 6
Fig 6



Fig 7
Fig 7

Fig 8
Fig 8

Fig 9
Fig 9

Fig 10
Fig 10



Fig 11
Fig 11

Fig 12
Fig 12

Fig 13
Fig 13

Fig 14
Fig 14

Fig 15
Fig 15

Fig 16
Fig 16

Fig 17
Fig 17

Fig 18
Fig 18

Fig 19
Fig 19



Fig 20
Fig 20

Web service project in Eclipse
Web service project in Eclipse
