How to create Data base reverse Engine

This guide details the steps to set up a Hibernate Reverse Engineering project with Oracle using Eclipse Kepler and Hibernate tools.

Step-by-Step Process for DB Reverse Engineering with Hibernate:

1. Install Oracle Database

Ø  Install Oracle Database or ensure it's already installed. Note the installation path for reference.

2. Install Eclipse Kepler

Ø  Download and install Eclipse Kepler from the Eclipse website.

3. Install JBoss Tools in Eclipse

Ø  In Eclipse, go to Help > Eclipse Marketplace.

Ø  Search for "JBoss Tools" and install it (JBoss Tools for Kepler).

4. Restart Eclipse

Ø  After JBoss Tools is installed, restart Eclipse.

5. Verify Hibernate Plugin Installation

Ø  Check for a Hibernate Code Generation icon in the Eclipse toolbar to confirm successful installation of Hibernate Tools.

6. Create a New Project for Reverse Engineering

Ø  In Eclipse, create a new project:

ü  Go to File > New > Project...

ü  Select Java Project and name it something like HibernateReverse.

7. Configure Hibernate in Eclipse

Follow the detailed guide from the URL: Hibernate Auto Generate HBM and Java.

8. Hibernate Tools Setup

Ø  Download Hibernate Tools from the official site or extract the Hibernate Tools jar into the plugins folder of Eclipse.

9. Configure Hibernate:

1. Create Hibernate Configuration File (hibernate.cfg.xml):

ü  Right-click on the project > New > Other > Hibernate > Hibernate Configuration File.

ü  Provide the following details:

• JDBC URL, Username, Password, DB Schema, Driver Class, and Dialect.

2. Create Hibernate Console Configuration:

ü  Right-click the project > New > Other > Hibernate > Hibernate Console Configuration.

ü  Add the DB driver jar to the classpath.

ü  Set the cfg.xml file created in the previous step.

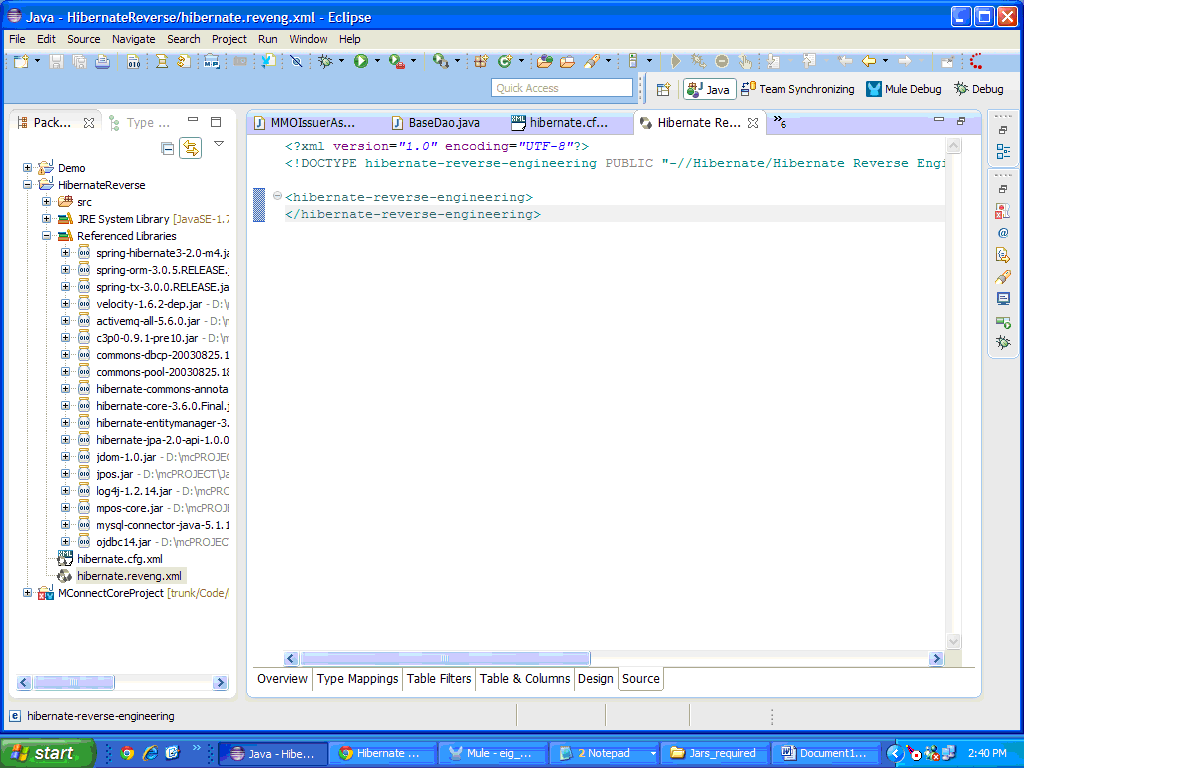

3. Create Reverse Engineering File (reveng.xml):

ü  Right-click the project > New > Other > Hibernate > Hibernate Reverse Engineering File.

ü  Set the schema and table names using SQL wildcards (e.g., TBL_%) to reverse engineer multiple tables.

4. Run Hibernate Code Generation:

ü  Click the Hibernate icon in the toolbar.

ü  Select Hibernate Code Generation, and create a new configuration with the reverse engineering file (reveng.xml).

ü  Go to the Exporters tab and check Generate domain code (.java) and Generate mappings (.hbm.xml).

10. Modify hibernate.cfg.xml

Here is an example configuration for Oracle:

xml

<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE hibernate-configuration PUBLIC     "-//Hibernate/Hibernate Configuration DTD 3.0//EN"     "http://hibernate.sourceforge.net/hibernate-configuration-3.0.dtd"> <hibernate-configuration>     <session-factory name="BUSINESSMASTER">         <property name="hibernate.connection.driver_class">oracle.jdbc.driver.OracleDriver</property>         <property name="hibernate.connection.password">MCONNECTUIRND2</property>         <property name="hibernate.connection.url">jdbc:oracle:thin:@1localhost:1521:testdb1</property>         <property name="hibernate.connection.username">MCONNECTUIRND2</property>         <property name="hibernate.default_schema">MCONNECTUIRND2</property>         <property name="hibernate.dialect">org.hibernate.dialect.Oracle9iDialect</property>     </session-factory> </hibernate-configuration>



Make sure to replace the username, password, DB schema, and JDBC URL with your own Oracle connection details.

11. Add Required External JAR Files to Classpath

Ø  Include the following jars in the classpath for your project:

1. activemq-all-5.6.0.jar
2. c3p0-0.9.1-pre10.jar
3. commons-dbcp-20030825.184428.jar
4. commons-pool-20030825.183949.jar
5. hibernate-commons-annotations-3.2.0.Final.jar
6. hibernate-core-3.6.0.Final.jar
7. hibernate-entitymanager-3.6.0.Final.jar
8. hibernate-jpa-2.0-api-1.0.0.Final.jar
9. jdom-1.0.jar
10. jpos.jar
11. log4j-1.2.14.jar
12. mpos-core.jar
13. mysql-connector-java-5.1.16.jar
14. ojdbc14.jar (Oracle JDBC Driver)
15. spring-hibernate3-2.0-m4.jar
16. spring-orm-3.0.5.RELEASE.jar
17. spring-tx-3.0.0.RELEASE.jar
18. velocity-1.6.2-dep.jar

12. Generate Domain Classes and Hibernate Mappings

Ø  Run the Hibernate Code Generation tool, and it will create:

ü  Java classes (domain models).

ü  Hibernate mapping files (hbm.xml) for the tables in the reverse-engineered schema.

This process will automate the generation of Java domain classes and Hibernate mapping files from the Oracle database schema, saving development time when dealing with large databases.
