Time Analysis for Congested Routes Using Shortest Path Algorithms

1. Acquire Satellite Data: Utilize the Google Maps API to gather road network information. This step includes employing the Directions API for route data and potentially the Roads API for more detailed road specifics.

- Configure Google Maps API

- Obtain an API key from the Google Cloud Console.

2. Graph Representation Construct a graph model of the road network based on the collected data. Each node will signify an intersection, while each edge will represent a road segment with a corresponding weight (such as distance or travel time).

3. Implement Dijkstra's Algorithm: To address the shortest path problem in the context of real-world scenarios like road networks and vehicle travel times, we can combine Dijkstra's algorithm.

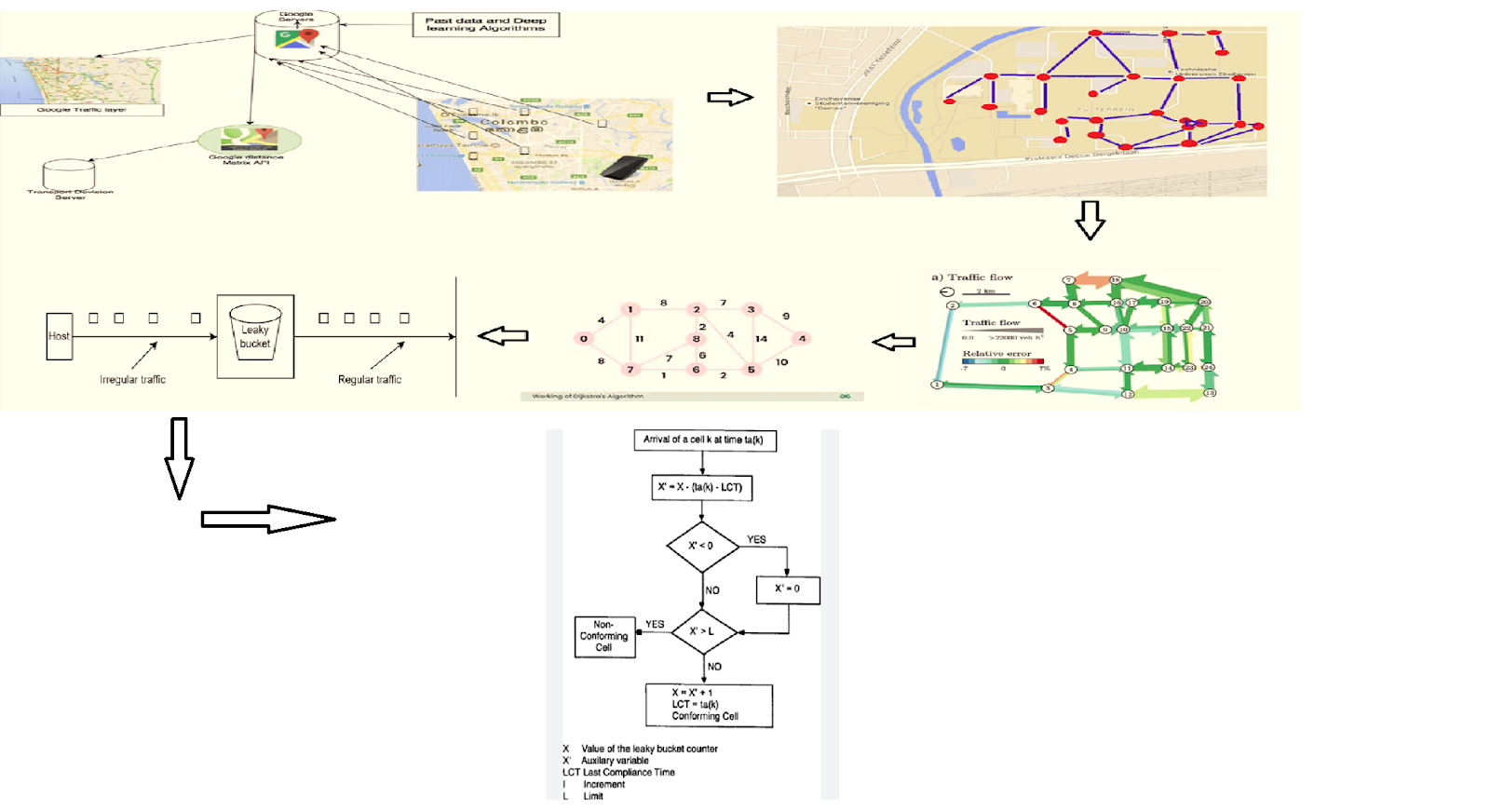

To build a road network algorithm that leverages satellite data, Dijkstra's algorithm, and the Leaky Bucket algorithm, we'll break down the problem into steps. Here's a high-level overview:

Retrieve Satellite Data: Use the Google Maps API to retrieve the road network data. This step involves using the Directions API to get route data and possibly the Roads API to get more precise road information.

Ø Set Up Google Maps API

ü Obtain an API key from the Google Cloud Console.

ü Ensure that the Directions API and Distance Matrix API are enabled.

Ø Retrieve Distance and Travel Time Data from Google Maps

ü Use the Google Maps Directions API to retrieve the distance and travel time between points.

Graph Representation

Create a graph representation of the road network using the retrieved data. Each node represents an intersection, and each edge represents a road segment with an associated weight (e.g., distance or travel time).

Implement Dijkstra's Algorithm:

To solve the shortest path problem considering real-world scenarios such as road networks and car travel times, we can leverage a combination of Dijkstra's algorithm and the Leaky Bucket algorithm. The Leaky Bucket algorithm can help simulate varying traffic conditions by dynamically adjusting the weights (travel times) of the roads based on factors such as traffic density.

Here's a conceptual overview of how we might integrate these concepts:

Ø Road Network Representation: Represent the road network using a graph where nodes are intersections and edges are roads with associated travel times.

Ø Traffic Simulation with Leaky Bucket Algorithm:

ü Each road has a bucket that represents its capacity to handle traffic.

ü The bucket leaks at a constant rate, simulating the road's capacity to clear traffic.

ü When a vehicle travels on the road, it fills the bucket, which increases the travel time dynamically.

Ø Shortest Path Calculation:

ü Use a modified Dijkstra's algorithm that adjusts edge weights based on the current state of the traffic (i.e., the fill level of the buckets).

Integrate Leaky Bucket Algorithm:

The Leaky Bucket algorithm is traditionally used in network traffic shaping, but it can be adapted to simulate dynamic traffic conditions in a road network. Here's how we can integrate it with Dijkstra's algorithm to simulate varying traffic conditions and find the shortest path in a road network.

Leaky Bucket Algorithm for Traffic Simulation

Initialization:

Ø Each road has a capacity (maximum traffic it can handle).

Ø Each road has a current traffic level.

Ø The leaky bucket algorithm simulates traffic flow by allowing traffic to enter the road up to its capacity and "leaking" traffic over time.

Traffic Update:

Ø Traffic increases when new vehicles enter the road.

Ø Traffic decreases over time (simulating vehicles leaving the road).

Dynamic Weight Adjustment:

Ø The travel time (weight) of the road increases as traffic increases.

Ø The travel time decreases as traffic decreases.

Integrate Everything:

Below is an example implementation: To build a road network algorithm leveraging satellite data and incorporating Dijkstra's algorithm with traffic simulation using the Leaky Bucket algorithm, we need to define several classes: RoadNetwork, Road, RoadSegment, LatLng (for latitude and longitude), LeakyBucket, and Dijkstra.

Class Definitions

1. LatLng: Represents a geographical coordinate.

2. RoadSegment: Represents a segment of a road between two LatLng points with a distance.

3. Road: Represents a complete road consisting of multiple RoadSegments.

4. RoadNetwork: Manages all roads and their segments.

5. LeakyBucket: Simulates traffic conditions by adjusting road segment weights.

6. Dijkstra: Implements Dijkstra's algorithm for shortest path finding.

Below is a simplified version of the implementation in Java:

Dependencies

Add the following dependencies to your pom.xml for HTTP requests and JSON parsing:

xml

</dependency>

<groupId>org.apache.httpcomponents.client5</groupId>

<artifactId>httpclient5</artifactId>

</dependency>

<groupId>com.google.maps</groupId>

<artifactId>google-maps-services</artifactId>

</dependency>

</dependencies>

LatLng class

public class LatLng {

private double latitude;

private double longitude;

public LatLng(double latitude, double longitude) {

this.latitude = latitude;

this.longitude = longitude;

}

public double getLatitude() {

return latitude;

}

public double getLongitude() {

return longitude;

}

@Override

public String toString() {

return "LatLng{" +

"latitude=" + latitude +

", longitude=" + longitude +

'}';

}

2. RoadSegment Class

Represents a segment of a road between two LatLng points with a travel time.

java

public class RoadSegment {

private final LatLng start;

private final LatLng end;

private double travelTime; // In minutes

public RoadSegment(LatLng start, LatLng end, double travelTime) {

this.start = start;

this.end = end;

this.travelTime = travelTime;

}

public LatLng getStart() {

return start;

}

public LatLng getEnd() {

return end;

}

public double getTravelTime() {

return travelTime;

}

public void setTravelTime(double travelTime) {

this.travelTime = travelTime;

}

3. Leaky Bucket Algorithm

Simulates traffic conditions by adjusting the travel times dynamically.

java

public class LeakyBucket {

private final double capacity;

private double currentLoad;

public LeakyBucket(double capacity) {

this.capacity = capacity;

this.currentLoad = 0;

}

public void addTraffic(double traffic) {

currentLoad = Math.min(currentLoad + traffic, capacity);

}

public void leakTraffic(double rate) {

currentLoad = Math.max(currentLoad - rate, 0);

}

public double getCurrentLoad() {

return currentLoad;

}

public double getTrafficFactor() {

return 1.0 + currentLoad / capacity;

}

4. Google Maps API Integration

Fetch the travel time between two points using the Directions API.

java

import com.google.maps.DirectionsApi;

import com.google.maps.GeoApiContext;

import com.google.maps.model.DirectionsResult;

import com.google.maps.model.DirectionsRoute;

import com.google.maps.model.TravelMode;

public class GoogleMapsService {

private final GeoApiContext context;

public GoogleMapsService(String apiKey) {

context = new GeoApiContext.Builder()

.apiKey(apiKey)

.build();

}

public double getTravelTime(LatLng origin, LatLng destination) throws Exception {

DirectionsResult result = DirectionsApi.newRequest(context)

.origin(new com.google.maps.model.LatLng(origin.getLatitude(), origin.getLongitude()))

.destination(new com.google.maps.model.LatLng(destination.getLatitude(), destination.getLongitude()))

.mode(TravelMode.DRIVING)

.await();

DirectionsRoute[] routes = result.routes;

if (routes.length == 0) {

throw new Exception("No routes found");

}

return routes[0].legs[0].duration.inSeconds / 60.0; // Convert to minutes

}

5. Dijkstra's Algorithm

Calculate the shortest time considering the dynamic traffic conditions.

java

import java.util.*;

public class Dijkstra {

private final Map<LatLng, Node> graph;

public Dijkstra(List<RoadSegment> roadSegments) {

this.graph = new HashMap<>();

for (RoadSegment segment : roadSegments) {

graph.putIfAbsent(segment.getStart(), new Node(segment.getStart()));

graph.putIfAbsent(segment.getEnd(), new Node(segment.getEnd()));

graph.get(segment.getStart()).addNeighbor(graph.get(segment.getEnd()), segment.getTravelTime());

graph.get(segment.getEnd()).addNeighbor(graph.get(segment.getStart()), segment.getTravelTime());

}

public double findShortestTime(LatLng start, LatLng end, Map<RoadSegment, LeakyBucket> trafficConditions) {

Map<Node, Double> distances = new HashMap<>();

PriorityQueue<Node> priorityQueue = new PriorityQueue<>(Comparator.comparing(distances::get));

Set<Node> visitedNodes = new HashSet<>();

for (Node node : graph.values()) {

if (node.getLocation().equals(start)) {

distances.put(node, 0.0);

} else {

distances.put(node, Double.MAX_VALUE);

}

priorityQueue.add(node);

}

while (!priorityQueue.isEmpty()) {

Node currentNode = priorityQueue.poll();

if (currentNode.getLocation().equals(end)) {

return distances.get(currentNode);

}

if (visitedNodes.contains(currentNode)) {

continue;

}

visitedNodes.add(currentNode);

for (Map.Entry<Node, Double> neighborEntry : currentNode.getNeighbors().entrySet()) {

Node neighbor = neighborEntry.getKey();

double edgeWeight = neighborEntry.getValue();

RoadSegment segment = new RoadSegment(currentNode.getLocation(), neighbor.getLocation(), edgeWeight);

LeakyBucket trafficCondition = trafficConditions.get(segment);

if (trafficCondition != null) {

edgeWeight *= trafficCondition.getTrafficFactor();

}

double newDist = distances.get(currentNode) + edgeWeight;

if (newDist < distances.get(neighbor)) {

distances.put(neighbor, newDist);

priorityQueue.add(neighbor);

}

return Double.MAX_VALUE; // No path found

}

private static class Node {

private final LatLng location;

private final Map<Node, Double> neighbors;

public Node(LatLng location) {

this.location = location;

this.neighbors = new HashMap<>();

}

public LatLng getLocation() {

return location;

}

public Map<Node, Double> getNeighbors() {

return neighbors;

}

public void addNeighbor(Node neighbor, double distance) {

neighbors.put(neighbor, distance);

}

6. Main Class

java

import java.util.*;

public class Main {

public static void main(String[] args) throws Exception {

String apiKey = "YOUR_GOOGLE_MAPS_API_KEY"; // Replace with your API key

GoogleMapsService mapsService = new GoogleMapsService(apiKey);

LatLng pointA = new LatLng(37.7749, -122.4194); // Example: San Francisco

LatLng pointB = new LatLng(34.0522, -118.2437); // Example: Los Angeles

double travelTime = mapsService.getTravelTime(pointA, pointB);

RoadSegment segment = new RoadSegment(pointA, pointB, travelTime);

List<RoadSegment> roadSegments = new ArrayList<>();

roadSegments.add(segment);

// Simulate traffic conditions

LeakyBucket leakyBucket = new LeakyBucket(100);

leakyBucket.addTraffic(50); // Add traffic load

Map<RoadSegment, LeakyBucket> trafficConditions = new HashMap<>();

trafficConditions.put(segment, leakyBucket);

Dijkstra dijkstra = new Dijkstra(roadSegments);

double shortestTime = dijkstra.findShortestTime(pointA, pointB, trafficConditions);

System.out.println("Shortest time from " + pointA + " to " + pointB + " is " + shortestTime + " minutes.");

}

Explanation

GoogleMapsService: Interacts with the Google Maps API to fetch travel times between points.
Dijkstra: Implements Dijkstra's algorithm to find the shortest path based on travel times.
LeakyBucket: Adjusts the travel times dynamically to simulate traffic conditions.

Conclusion

This setup uses Google Maps API to obtain real-world travel times, then applies Dijkstra's algorithm for pathfinding, and uses the Leaky Bucket algorithm to adjust the travel times based on traffic simulation. This combination provides a realistic solution to the shortest path problem in road networks, accounting for dynamic traffic conditions.
